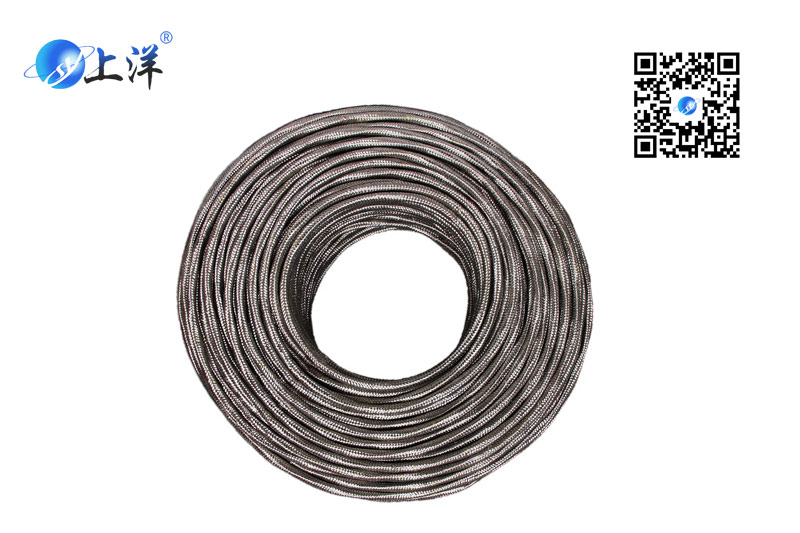

產品型號：GNB500
執行標準：Q/IRMV2－2008
產品特性：
1、額定電壓：450/750V
2、工作溫度：

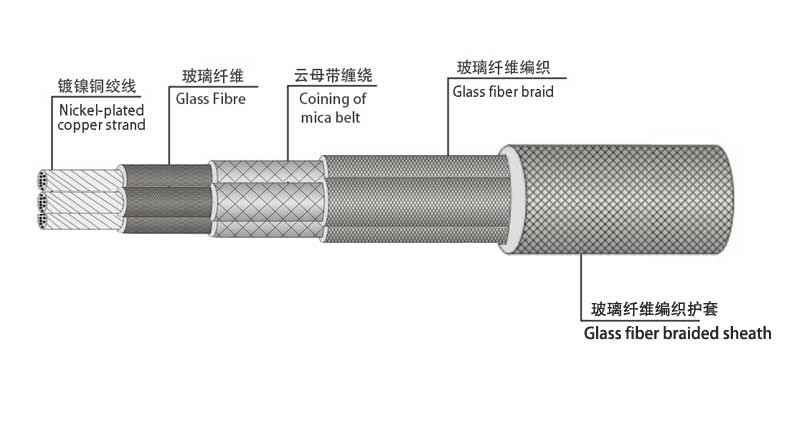

3、導 體：裸銅或鍍鎳銅絲絞合
4、絕 緣：玻璃纖維+云母繞包+玻璃纖維編織
5、護 套：玻璃纖維編織+涂膠
6、顏 色：紅/黃/蘭/白/黑/棕/綠等
規格結構及技術參數：
|
芯數×截面 |
導體結構 |
絕緣厚度 |
絕緣外徑 |
護套厚度 |
平均外徑 |
|
|
2 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.20 |
7.80 |
26.7 |
|
3 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.20 |
8.10 |
26.7 |
|
4 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.40 |
9.20 |
26.7 |
|
5 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
10.0 |
26.7 |
|
6 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
10.80 |
26.7 |
|
7 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
10.80 |
26.7 |
|
8 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.50 |
11.50 |
26.7 |
|
10 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.6 |
13.00 |
26.7 |
|
12 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.6 |
13.80 |
26.7 |
|
19 × 0.75 |
42/0.15 |
0.60 |
2.40 |
1.8 |
16.2 |
26.7 |
|
2 × 1 |
32/0.20 |
0.60 |
2.60 |
1.40 |
8.60 |
20.0 |
|
3 × 1 |
32/0.20 |
0.60 |
2.60 |
1.40 |
8.80 |
20.0 |
|
4 × 1 |
32/0.20 |
0.60 |
2.60 |
1.50 |
9.40 |
20.0 |
|
5 × 1 |
32/0.20 |
0.60 |
2.60 |
1.50 |
10.40 |
20.0 |
|
6 × 1 |
32/0.20 |
0.60 |
2.60 |
1.60 |
11.50 |
20.0 |
|
7 × 1 |
32/0.20 |
0.60 |
2.60 |
1.60 |
11.50 |
20.0 |
|
8 × 1 |
32/0.20 |
0.60 |
2.60 |
1.60 |
12.40 |
20.0 |
|
10 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
13.80 |
20.0 |
|
12 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
10.50 |
20.0 |
|
16 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
16.0 |
20.0 |
|
19 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
17.2 |
20.0 |
|
2 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.50 |
9.20 |
13.7 |
|
3 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.50 |
9.50 |
13.7 |
|
4 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.50 |
10.20 |
13.7 |
|
5 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
11.40 |
13.7 |
|
6 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
12.20 |
13.7 |
|
7 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
12.20 |
13.7 |
|
8 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.60 |
13.0 |
13.7 |
|
10 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.80 |
15.0 |
13.7 |
|
2× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.60 |
10.80 |
8.21 |
|
3× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.60 |
11.20 |
8.21 |
|
4× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
12.60 |
8.21 |
|
5× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
13.60 |
8.21 |
|
6× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
14.60 |
8.21 |
|
7× 2.5 |
49/0.25 |
0.70 |
3.50 |
1.80 |
14.60 |
8.21 |
|
2× 4 |
56/0.30 |
0.70 |
4.10 |
1.60 |
12.0 |
5.09 |
|
3× 4 |
56/0.30 |
0.70 |
4.10 |
1.70 |
9.8 |
5.09 |
|
4× 4 |
56/0.30 |
0.70 |
4.10 |
1.80 |
14.0 |
5.09 |
|
2× 6 |
84/0.30 |
0.70 |
4.90 |
1.60 |
13.8 |
3.39 |
|
3× 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
14.8 |
3.39 |
|
4× 6 |
84/0.30 |
0.70 |
4.90 |
1.80 |
16.0 |
3.39 |
