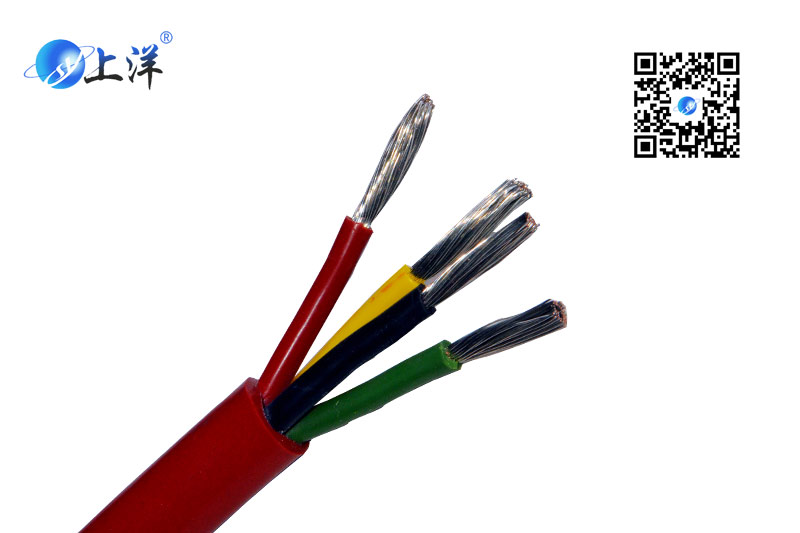

Product model: ygcb
Executive standard: Q / irmv2 － 2008
Product characteristics:
1. Rated voltage: 450V / 750V
2. Working temperature: - 60 ~ + 200 ℃, maximum operating temperature 300 ℃
3. Conductor: bare copper wire or stranded tinned copper wire
4. Insulation: silicone rubber
5. Sheath: silicone rubber
6. Glass fiber weaving
7. Color: Red / yellow / Blue / White / Black / Brown / green, etc
Features / uses:
It can be used in long-term humid environment, with excellent electrical performance, waterproof and mold resistance. Excellent bending performance, the minimum bending radius is 16 times of the outer diameter of the cable, and it can be moved. It is used in various mobile motors with AC rated voltage of 300 / 500V and below, steel, aviation, power plant, petrochemical and other high-temperature environments.
Delivery requirements:
According to the contract agreement of both parties, short delivery of no less than 10m is allowed. The quantity shall not exceed 10% of the total delivery length.
Specification structure and technical parameters:
|
芯數(shù)×截面 （mm2） |
導體結(jié)構(gòu) 根數(shù)/線徑 （mm） |
絕緣厚度 （mm） |
絕緣外徑 （mm） |
護套厚度 （mm） |
電線外徑（mm） |
（Ω/km） | ||
|
標稱 |
公差 |
銅芯 |
鍍錫絲 | |||||
|
3×4 |
56/0.30 |
0.8 |
4.3 |
1.8 |
16.5×7.9 |
±0.50 |
4.95 |
5.09 |
|
3×6 |
84/0.30 |
0.8 |
4.9 |
2.0 |
18.7×8.9 |
±0.50 |
3.30 |
3.39 |
|
3×10 |
84/0.40 |
1.0 |
6.6 |
2.5 |
24.8×11.6 |
±0.60 |
1.91 |
1.95 |
|
3×16 |
126/0.40 |
1.2 |
8.2 |
2.8 |
30.2×13.8 |
±0.80 |
1.21 |
1.24 |
|
3×25 |
196/0.40 |
1.4 |
10.1 |
3.0 |
36.3×16.1 |
±0.80 |
0.78 |
0.795 |
|
3×35 |
276/0.40 |
1.4 |
11.4 |
3.2 |
40.6×17.8 |
±1.0 |
0.554 |
0.565 |
|
3×50 |
396/0.40 |
1.6 |
13.9 |
3.5 |
48.7×20.9 |
±1.0 |
0.386 |
0.393 |
|
3×70 |
360/0.50 |
1.6 |
15.6 |
3.8 |
54.4×23.2 |
±1.0 |
0.272 |
0.277 |
|
3×95 |
475/0.50 |
1.8 |
18.1 |
4.0 |
62.3×26.1 |
±1.2 |
0.206 |
0.210 |
|
3×120 |
608/0.50 |
2.0 |
20.0 |
4.5 |
69×29 |
±1.5 |
0.161 |
0.164 |
|
3×150 |
756/0.50 |
2.2 |
22.4 |
4.8 |
76.8×32 |
±1.5 |
0.129 |
0.132 |
|
3×185 |
925/0.50 |
2.4 |
24.8 |
5.2 |
84.8×35.2 |
±2.0 |
0.106 |
0.108 |
|
3×240 |
1221/0.50 |
2.6 |
28.2 |
5.5 |
95.6×39.2 |
±2.0 |
0.0801 |
0.082 |
